Bio-Pulse model VF-XP magnetotherapeutic system

Technical data:

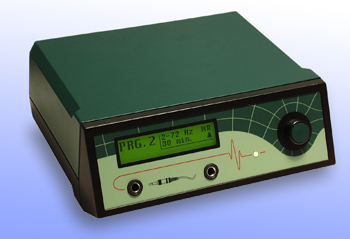

Control Unit VF-XP - Generator
Power supply: AC 110 - 240 V, 50/60 Hz
Power consumption: 30 VA
Dimensions (WxDxH): 230 x 200 x 90 mm
Weight (generator only): 0.95 kg
Number of outputs: 2 appl. outputs

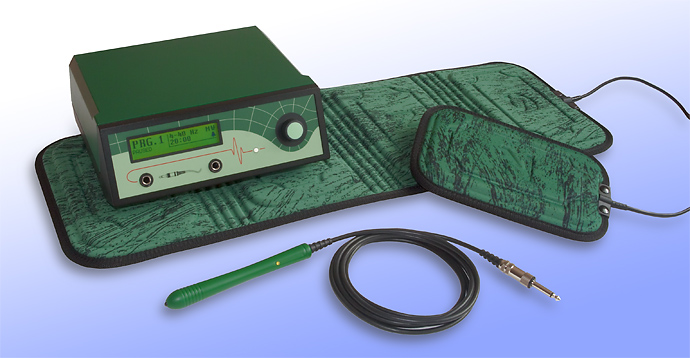

Light portable applicators (basic):
A1C - single section pad, dimensions 230 x 150 x 22 mm,          weight 0.4 kg
A4C - four section belt, dimensions 660 x 240 x 22 mm,          weight 1.3 kg
Optional appliactors:
APE - magnetic pen, dim.ø18 x 177mm, weight 0.13 kg B1C - ring applicator, dim.ø350 x 30mm, weight 1.1 kg

The portable device of modern construction, designated for professional and/or family use. Operation of the system is greatly simplified by the use of graphic display and one navigation button. User can easy select one of 9 pre-programmed therapeutical programs. These programs do not limit the flexibility of the system in any way because each of them can be easily redefined. This device offers extended frequency range from 1.0 to 99.9 Hz with 0.1Hz step. It is equipped with the real time clock and calendar too, so it can record process of usage of the unit and disply it later on request.
